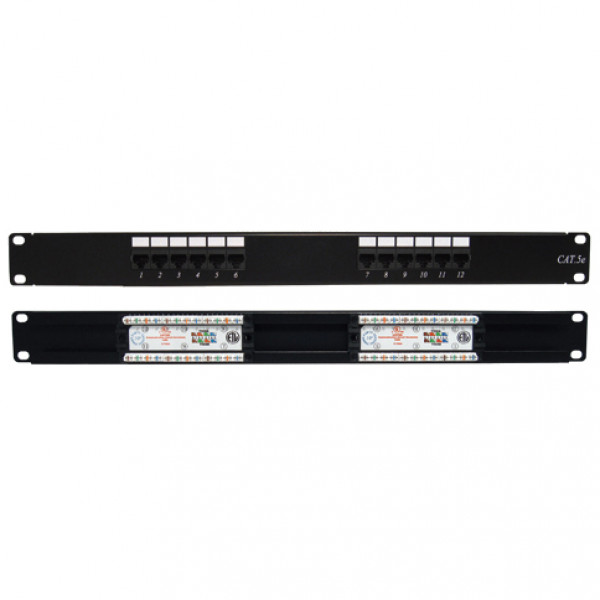

CAT5E 12 Port 110 Type IDC design Rackmount Patch Panel, 1xEIA Unit 19(W)x1.3/4(H)x1.1/4(D).

Be the first to review this product

Availability: Drop ship

$19.99

DROP SHIPPED ITEM:

This item is shipped from our affiliate facility. The stock level is not under our control and is subject to change. We will contact those that order this item in the event of a problem. If this item is ordered together with other products, this item may be shipped separately and may arrive separately.

Details

CAT5E 12 Port 110-IDC Rackmount Patch Panel, 1xEIA Unit 19(W)x1.3/4(H)x1.1/4(D).

Features:
  • Space Saving Design
  • Made of sturdy, rolled-edge, anodized aluminum
  • Fully enclosed design for protection of printed circuitry during termination
  • Color-coded for T568A and T568B wiring schemes
  • Constructed from UL94-V-0 high-impact, fire-retardant ABS or PC material
  • Pair punch sequence enables a pair twist within 1/2" of termi- nation
  • Beryllium copper contacts: 50 gold-plated pins over100 nickel layer
  • Insertion life cycle: 750 cycles (minimum) / I.D.C. 250 cycles (minimum)
  • Operating temperature: -40oC to +68oC
  • FCC Part 68


Specifications:
  • SKU: 041-371/12
  • Panel:
    - Material: SECC
    - Thickness: 1.6mm
    - Plated: Black
    - Dimension: EIA-310D (1U)
  • IDC Connector:
    - Operating Life: Min. 250 Reterminations
    - IDC Contact Material: Alloy C2680-H
    - IDC Thickness: 0.8mm
    - IDC Plating Housing: Tin Plating over Nickel
    - Plastin Housing: PC+30% Glass-Fiber
    - Compability: 22-26AWG Solid Wire
  • Jack Connector:
    - Operating Life: Min. 750 Insertions
    - Contact Material: Phosphor Bronze
    - Jack Contact Plating: 50μ Gold Plated
    - Jack Plastic Housing: Glass Filled Polyester
  • Printed Circuit Board:
    - Material: FR4
    - Thickness: 1.6mm
