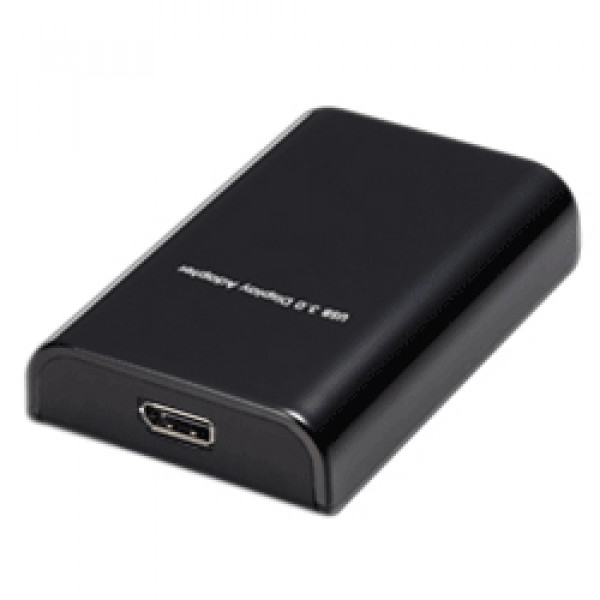

Black GWC USB 3.0 to DisplayPort Adapter, Extend and Mirror Mode Support, Model: AN3820.

The USB 3.0 to DisplayPort Adapter is a device which enables connection to second display device to a computer using USB 3.0 port. With this convenient design, it can connect up to 6 display devices to a computer without installing extra video cards. Once the driver has been installed, the USB-attached monitor will be enabled immediately. No function key on the adapter and there is no need to reboot the operating system after unplugging the USB adapter.

System performance is an important issue when using multiple monitors. Another benefit of this adapter is that it occupies little computer resource; ensuring users get quality display without comprising computer performance.

Features:

---

• Add-on monitor, LCD or projector through a single USB 3.0 port hot-plug
• Compliant with USB 3.0 Super Speed upstream connection
• Supports High Resolution up to 2560x1600 pixels
• Video streaming is supported up to 1080p
• Extend and Mirror mode support
• Resumes from hibernation and suspend modes
• Supports up to 6 USB display adapters to work simultaneously

Specifications:

---

• Host Interface: USB 3.0
• Video Interface: DisplayPort
• Connectors:
  - Video output: DisplayPort connector
  - Host upstream link: USB 3.0 Micro B type connector
• Connectivity: Up to 6 adapters on a computer
• Power Mode: Bus-power
• OS Support:
  - Windows XP
  - Windows Vista
  - Windows 7
  - Windows 8
• Supported Modes: Extended Desktop
• Modes: Mirrored Desktop, Primary Display
• Housing:
  - Material: ABS (Plastic)
  - Color: Black
• Working Environment:
  - Operation temperature: 10°C-40°C
  - Storage temperature: -20°C~70°C
  - Relative Humidity: < 85% non-condensing
• Certificate: CE, FCC
• Resolutions and Refresh rate:

  Resolution	Name	Refresh Rate
  640x480	VGA	60 72 75 85
  800x600	SVGA	56 60 72 75 85
  1024x768	XGA	60 70 75 85
  1280x720	720p	50 60
  1280x768	WXGA+	60 75 85
  1280x800	WXGA	60
  1280x1024	SXGA	60 75
  1366x768	WXGA+	50 60
  1400x1050	SXGA+	60 75 85
  1600x900		60
  1600x1200	UXGA	60
  1680x1050	WSXGA+	60
  1920x1080	1080p	50 60
  1920x1200	WUXGA	60
  2048x1152		60
  2048x1536		60
  2560x1440		60
  2560x1600	WQXGA	60

  640x480, 720x400*, 720x480, 768x576, 800x600,
  832x642, 800x480, 848x480, 1024x600, 1024x768,
  1152x864, 1152x870, 1280x720, 1280x768, 1280x800,
  1280x960, 1280x1024, 1360x768, 1366x768, 1368x768,
  1400x1050, 1440x900, 1600x900, 1600x1200,
  1680x1050, 1920x1080, 1920x1200, 2048x1080,
  2048x1152, 2048x1280, 2048x1536, 2560x1440,
  2560x1600

Package contents:

---

• USB 3.0 to DisplayPort Adapter x1
• CD (Driver & User's Manual) x1
• Quick Installation Guide x1
• USB Cable x1
