Details

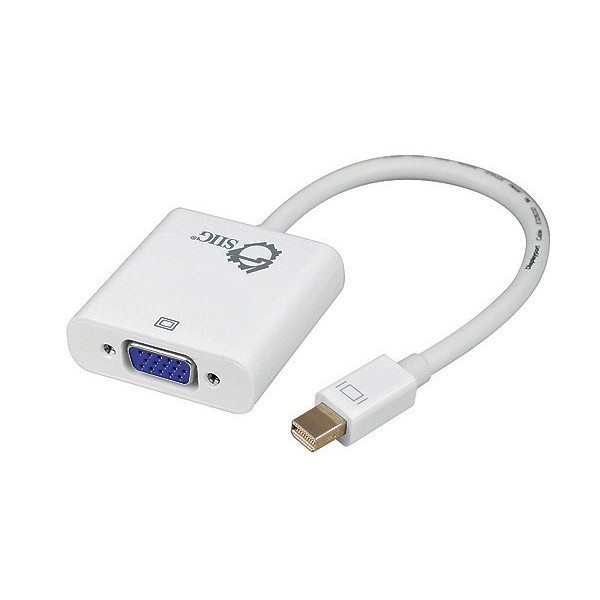

SIIG's Mini DisplayPort to VGA Adapter Converter is designed to convert your mini DisplayPortTM output to a VGA port. It allows you to connect your mini DisplayPort-equipped notebook or desktop system to a VGA displays. It is the convenient and cost-effective solution to enable the latest mini DisplayPort-equipped computer to work with an analog VGA monitor, saving you the cost of upgrading the display device.
Features:
Specifications:
Features:
- Compatible with Intel Thunderbolt
- Connect the latest mini DisplayPort equipped computer systems to VGA displays
- Compliant with DisplayPort standards, supporting 1.62Gbps and 2.7Gbps
- Supports 1080p and PC graphics resolution up to 1920x1200
- Supports 8-bit per color RGB color format
- Supports full DisplayPort link training
- Supports EDID and MCCS pass-through
- Automatic monitor plug and unplug detect for VGA output
- Compact design with 8KV ESD protection
Specifications:
- Chipset: Analogix ANX9832
- Compliant with DisplayPort 1.1a receiver
- Configurable 1 or 2 lane operation
- Supports 1.62 and 2.7 Gbps data rates
- Supports Down Spread Spectrum (SSC)
- Display modes:
- PC: VGA, SVGA, XGA, SXGA, UXGA & WUXGA display modes
- HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p - Product:
- Overall Length: 8.85" ± 0.6" (225mm ± 15mm)
- Color: White
- Material: Plastic - Connectors:
- 20-Pin Mini DisplayPort (male) to 15-pin VGA (female)
- Mini DisplayPort connector housing (L x W x H): 1.06" x 0.43" x 0.35" (27 x 11 x 9 mm)
- VGA connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm) - Environmental conditions:
- Operating temperature: 32 to 140 degrees F
- Storage temperature: 14 to 158 degrees F
- Humidity: < 85% non-condensing - Certifications/Standards: FCC, CE, RoHS
- Warranty: 3 years limited
