Details

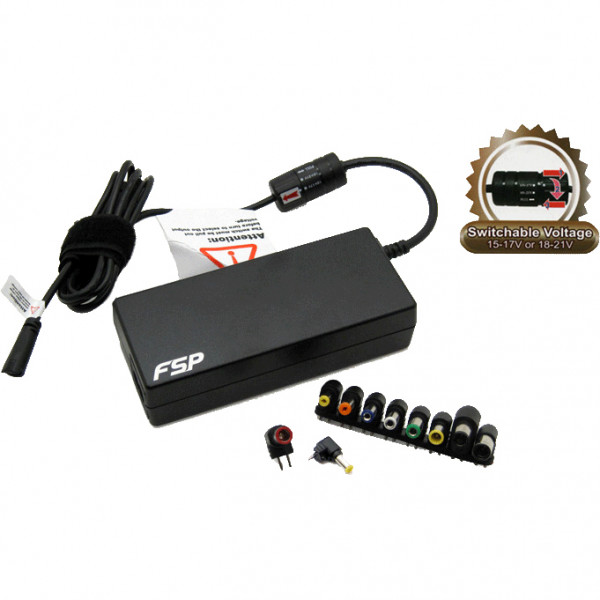

This high-quality 90W universal PC notebook adapter with switchable voltage (15-17V or 18-21V) meets CEC (California Energy Commission) & ENERGY STAR LEVEL IV standards, (Power Saving < 0.5W & Efficiency > 85%). (NB S90 is listed on ENERGY STAR External Power Supplies ACDC Product List as FSP090-11UAA1). It is ideal for value replacement or as a second unit of reliable power source with full compatibility to your wide range of notebook PCs. The NB S90 features compact design, high-impact durability, worldwide safety, and reliability that are either meets or exceed the original manufacturer's power specifications. For maximum compatibility and versatility, the NB S90 comes with TEN (10) interchangeable I-Point power tip connectors for use with DELL, HP, SONY, IBM, LENOVO, ACER, ASUS, COMPAQ, GATEWAY, HITACHI, TOSHIBA, VIEWSONIC, PANASONIC, FUJITSU, SAMSUNG, NEC, SHARP, LG and more PC notebook models. Please click here for latest compatibility information. For home, office or on the road, the NB S90 is designed for such multi-purpose, cross-model use, including soft case travel bag, power tip holder. Power-Up with confidence, all models come with a standard FSP Quality Assurance Program that provides a direct service guaranteed quality and performance for a period of 3-Year. RoHS, Lead-Free, Green Product (G.P) global environmental friendly status.
Features:
Specifications:
Features:
- 90-WATT | 15~17V OR 18-21V @ 5.31A MAXIMUM PERFORMANCE
- HIGH-EFFICIENCY POWER CONVERSION RATIO @ 85%+
- MEETS CEC & ENERGY STAR LEVEL IV STANDARDS
- 10 I-POINT INTERCHANGEABLE CONNECTOR TIPS INCLUDED
- NEWLY ADDED CONNECTOR TIP FOR LATEST SAMSUNG NOTEBOOK MODELS INCLUDE
- PLEASE CLICK HERE FOR LATEST COMPATIBILITY INFORMATION
- STANDARD AC INPUT | AC POWER CORD INCLUDED

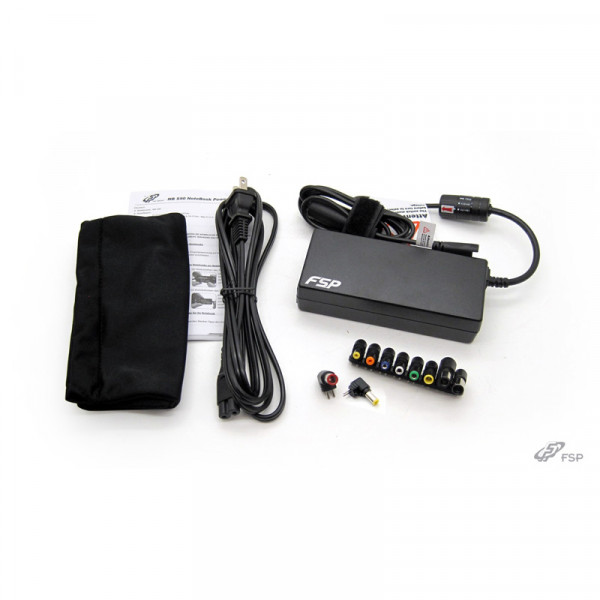

- SOFT TRAVEL CARRYING CASE | VELCRO TIE INCLUDED
- ENERGY SAVER | STAND-BY LESS THAN 0.5-WATT
- LOW RIPPLE | OPERATING NOISE
- PROVIDE SUFFICIENT CHARGING POWER FOR BATTERY UNIT
- PATENTED INPUT FUSE PROTECTION TECHNOLOGY
- ENERGY SAVING CALCULATOR
Specifications:
- APPLICATIONS: 15~17V OR 18-21 | 90-WATT MAX. NOTEBOOK PCs
- COOLING FAN (S): N/A
- MAXIMUM OUTPUT POWER: 90-WATT @ 5.31A MAXIMUM
- CAPACITY: 5.31A
- VOLTAGE: 15~17V OR 18~21V
- OUTPUT CONNECTORS: 10 I-POINT INTERCHANGEABLE CONNECTORS (BARREL TYPE)
- CONNECTOR SIZE: VARIES
- OPERATING EFFICIENCY: 85% +
- OPERATING TEMPERATURE: 0 ~ 40 °C +
- OPERATING HUMILITY: 5 ~ 95% NON-CONDENSING
- STORAGE TEMPERATURE: -20 ~ 80 °C +
- RIPPLE / NOISE: 190 mV
- SAFETY APPROVAL: UL/CUL, FCC, TUV, CE, Nemko, GOSTC-Tick, CB
- MBTF: 100,000 HOURS @ TYPICAL
- OTHER TESTS: 100% HI-POT, 100% BURN-IN @ FULL LOAD
- UNIT SIZE: 2.28" (W) X 5.28" (D) X 1.26" (H)
- Input Voltage: 100V AC to 240V AC, 50 ~ 60Hz
- Power Factor Correction (PFC): AUTO FULL RANGE
- Input Current:
- A rms MAX. @ 115V
- A rms MAX. @ 230V - Input Protection: Patented Input Fuse Protection
- AC INPUT TYPE: STANDARD AC CORD (INCLUDED)
- NUMBER OF OUTPUTS: 1
- Output Voltage: +15V~+17V OR +18~21V DC
- Output Current: 5.31A @ +16V DC MAX| 4.74A @ +19V DC MAX
- Output Protection: Complete OVP, OCP, SCP Protection
- OVP: OVER VOLTAGE OUTPUT PROTECTION
- OCP: OVER CURRENT OUTPUT PROTECTION
- SCP: SHORT CIRCUIT OUTPUT PROTECTION
