Details
The XR17V358 series Multi-I/O PCI-Express controller cards are the high performance RS-232 serial interface controller for home and industrial users. They are compatible with industrial standard 16C550 UART, which provide a low cost connection platform for industrial machines, POS machines, external modems, mice, etc.
Specifications:
Software Requirement:
Specifications:
- Exar Chipset: XR17V358
- PCIe 2.0 Gen 1 compliant
- x1 Link, dual simplex, 2.5Gbps in each direction
- Supports x1, x2, x4, x8, x16 PCIe Bus connector keys
- RS485 signals:
- DATA+ (B)
- DATA- (A)
- GND - RS422 signals:
- T/R+
- T/R-
- RXD+
- RXD-
- GND - 600W surge protection, 15KV ESD protection for serial ports
- Working mode: asynchronous working, point-to-point to point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
- Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
- Transmission media: twisted-pair cable or shielded cable
- Interface protection: 600W surge proteection, 15 kV ESD protection for all serial ports
- 2500Vrms magnetic coupling isolation voltage protection
- High common-mode transient immunity:
- 25KV / us - 1000 V DCDC power supply isolation module protection
- Direction Control
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and even/odd/mark/space/none
- Flow control none, hardware and xon/xoff
- Load capability supports point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
- Extended operating temperature range:
- -40°C to 85° C
Software Requirement:
- Windows 8
- Windows 7
- XP
- Vista
- Windows Server 2003/2008/2012
- Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer

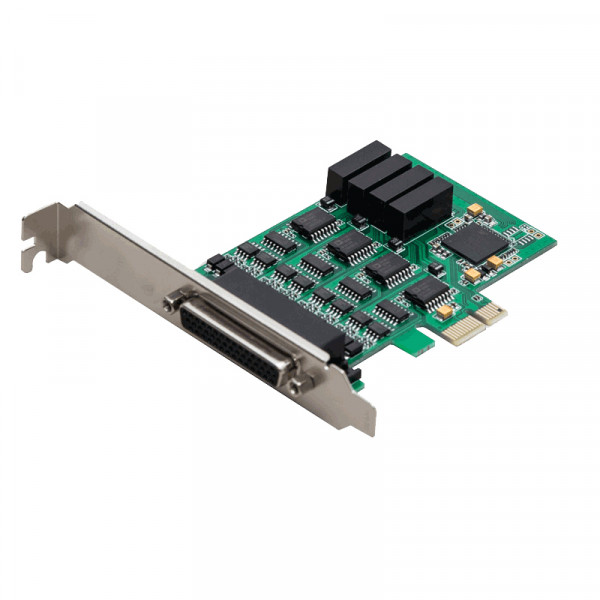

- 1 x 4-port PCIe Serial Card

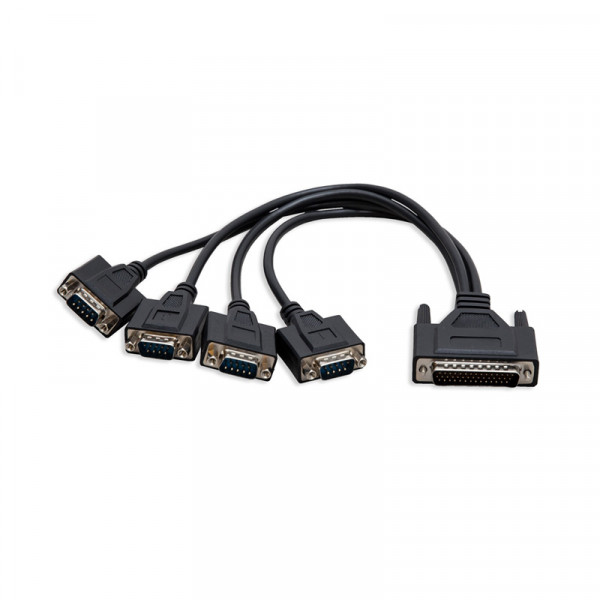

- 1 x 4-port Serial Octopus Cable

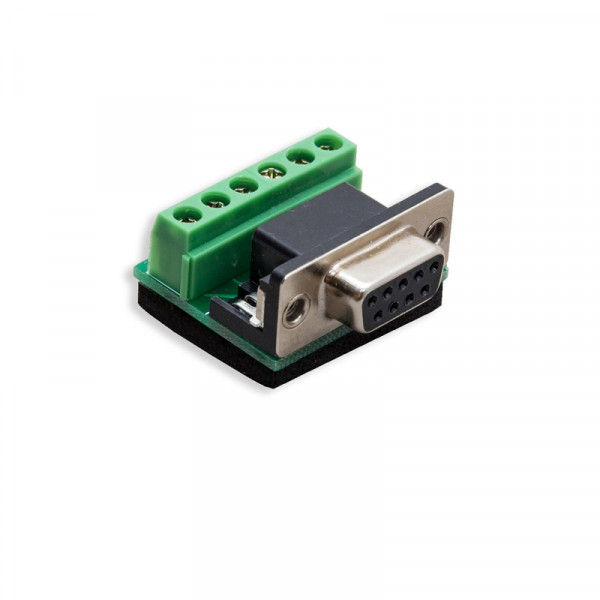

- 4 x Serial Adapters
- 1 x User Manual
- 1 x Driver CD
- 1 x Low Profile Bracket
