Details

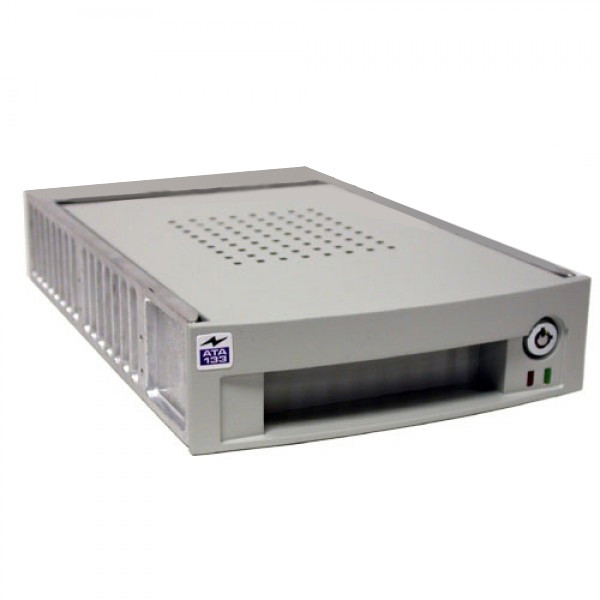

SI-130SA is an enhancement SATA to ATA removable rack, with convert interface for IDE (Parallel) HDD, this rack has a standard 40-pin ATA port which can support to a parallel Ultra 100/133 ATA (IDE) HDD. It accepts Serial ATA commands through the Serial ATA interface from the host, decodes the commands and converts them to parallel ATA commands to the device. Response from the device through the parallel ATA bus are deciphered, processed and converted to Serial ATA protocol and sent to the host. White box.
Feature:
Faster interface 150MB/s bus rate.
Hot Plug Capability
100% software compatible
Supports Serial ATA Generation 1 transfer rate of 1.5Gb/s.
Compliant whit Serial ATA 1.0 specifications.
Supports Spread Spectrum in receiver.
Compliant with ATA Specifications.
Compatible with Ultra ATA 133.
Specifications:
Dimension: 9.13 x 5.75 x 1.65" (L x W x H),
Weight: 2.2 lbs,
Interface: Serial ATA to Parallel ATA device bridge,
Power input: +12V DC +-5%, +5V DC +-5%,
Power output: +12V DC, 4A, +5V DC, 3A.
Cooling: rear 40 x 40 x 10mm, 6.8C.F.M. Cooling Fan.
Material: Metal, Aluminum Frame & Tray.
Display: Green LED for Power on, Red LED for HD accessing.
Security: Power on/off Key lock.
Temperature: Operating 5oC ~ 60oC, Non-operating: -25oC ~ 80oC.
