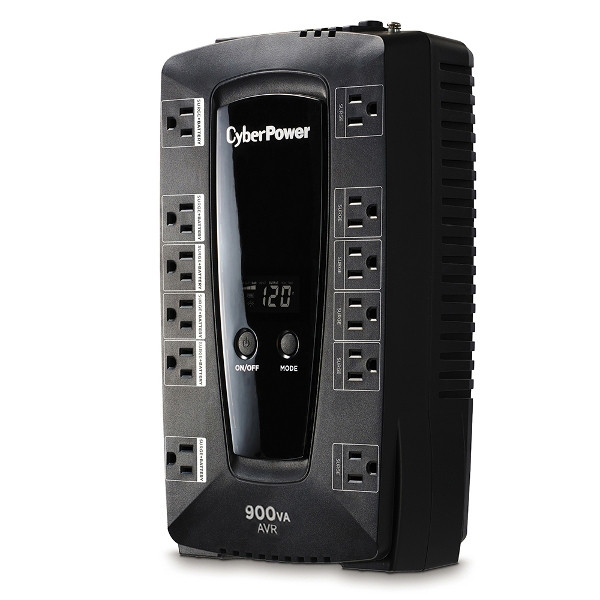

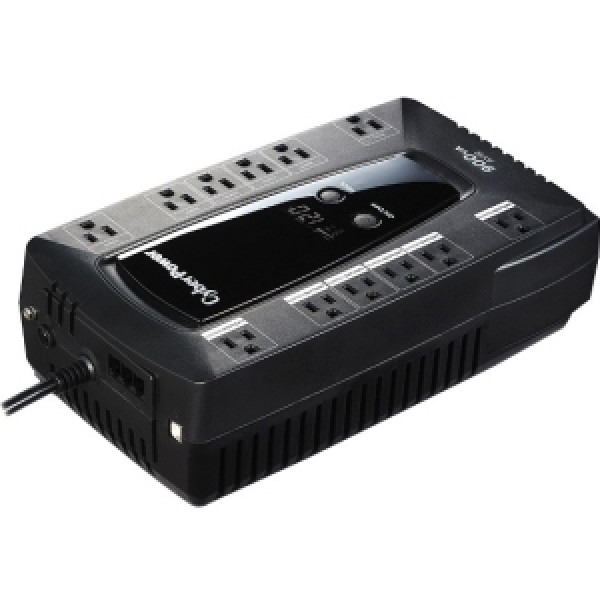

CyberPower Intelligent LCD Series AVRG900LCD 900VA 480W UPS.

A compact UPS with line interactive topology, the CyberPower AVRG900LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG900LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG900LCD comes with a three-year warranty (including coverage of batteries) and a $200,000 Connected Equipment Guarantee.

Features:

---

• Battery Backup:
  - Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
• Surge Protection:
  - Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• Data Line Protection:
  - Prevents power surges that travel through telephone lines from causing damage to electronics.
• Line Interactive Topology:
  - Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• Automatic Voltage Regulation (AVR):
  - Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
• Simulated Sine Wave Output:
  - Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
• GreenPower UPS Bypass Design:
  - Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
• Ultra Quiet Design:
  - Minimizes noise during operation for a quieter work environment.
• PowerPanel Personal Edition Software:
  - Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
• ENERGY STAR:
  - This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
• Three-Year Warranty:
  - CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
• Connected Equipment Guarantee:
  - CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

Specifications:

---

• General:
  - UPS Topology: Line Interactive
  - Energy Saving: GreenPower UPS Bypass Technology
  - ENERGY STAR Qualified: Yes
• Input:
  - Voltage: Nominal 120 VAC
  - Input Voltage Range: 90 - 148 VAC
  - Frequency: 60 Hz + / - 3 Hz
  - Plug Type: NEMA 5-15P
  - Plug Style: Right Angle, 45° Offset Right
  - Cord Length: 5 ft
• Output:
  - VA: 900 VA
  - Watts: 480 W
  - Automatic Voltage Regulation: Boost 1 +10% / Buck -10%
  - On Battery Voltage: 120 VAC + / - 5%
  - On Battery Frequency: 60 Hz + / - 1%
  - On Battery Waveform: Simulated Sine Wave
  - Outlets - Total: 12
  - Outlets - Battery & Surge Protected: 6
  - Outlets - Surge-Only Protected: 6
  - Transfer Time: 4 ms
  - Outlet Type: NEMA 5-15R
  - Overload Protection:
  - Internal Circuitry Limiting
  - Circuit Breaker
  - Rated Power Factor: 0.53
• Battery:
  - Runtime at Half Load: 10 minutes
  - Runtime at Full Load: 2 minutes
  - Battery Type: Sealed Lead-Acid
  - Battery Size: 12V/9Ah
  - Replacement Battery: RB1290A
  - Battery Quantity: 1
  - User Replaceable: Yes
  - Typical Recharge Time: 8 hours
  - Hot-Swappable: No
• Surge Protection & Filtering:
  - Surge Suppression: 1,030 J
  - Phone RJ11: 1-In, 2-Out
  - EMI/RFI Filtration: Yes
• Management & Communications:
  - HID Compliant USB Port: Yes
  - Cable Management: USB Cable
  - LED Indicators:
  - Power On
  - Wiring Fault
  - LCD Indicators:
  - Voltage
  - Frequency
  - Runtime
  - % Load
  - % Battery
  - Online
  - Muted
  - Audible Alarms:
  - On Battery
  - Low Battery
  - Overload
  - Fault
  - Software: PowerPanel Personal Edition
• Physical:
  - Form Factor: Compact
  - Dimensions - WxHxD (in): 12.2 x 7 x 3.5
• Environmental:
  - Operating Temperature: 32° F - 104° F °F (0° C - 40° C °C)
  - Operating Humidity: 0 - 90% (non-condensing)
  - Storage Temperature: 5 - 113 °F (-15 - 45 °C)
  - Maximum Operating Elevation: 6,562 ft (2,000 m)
  - Maximum Storage Elevation: 50,000 ft (15,000 m)
• Certifications:
  - Safety:
  - UL1778 4th
  - cUL 107.3-05
  - FCC DOC Class B
  - Environmental: RoHS Compliant
• Warranty:
  - Product Warranty: 3 Years Limited
  - Connected Equipment Guarantee: Lifetime
  - CEG Amount: $200,000
