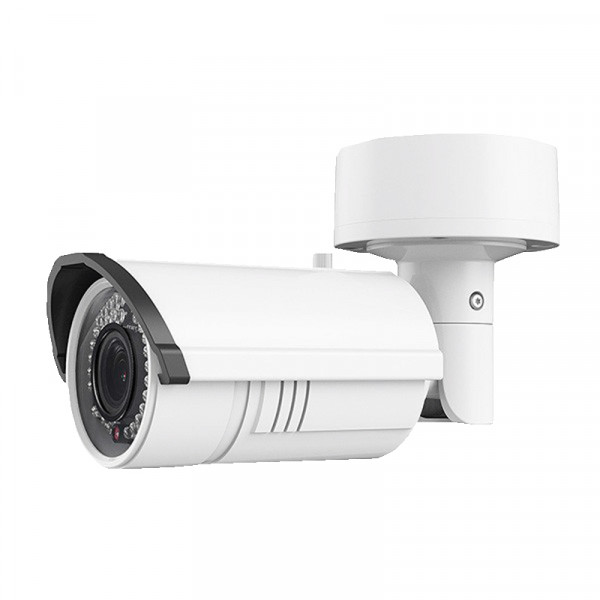

LTS CMIP9743W-SZ 1/3in Sensor Bullet Camera, 4.1MP High Definition, 2.8-12mm Varifocal Lens, Approx. 100ft IR Range
Features:
Specifications:
Features:
- 4.1MP High Definition
- True 120dB Wide Dynamic Range
- 2688x1520P@20fps
- 2.8-12mm Varifocal Lens
- 3D DNR, BLC
- Intelligent H.264 Zip+
- Audio I/O, Alarm I/O
- Motorized Lens
- IP66
- DC 12V
- PoE
Specifications:
- Camera Series: Platinum Series
- Camera Resolution: 4.1MP
- Camera Technology: IP / Network
- Camera Housing: Bullet
- Featured Product: No
- Camera:
- Image Sensor: 1/3" Progressive Scan CMOS
- Min. Illumination: 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
- Shutter Speed: 1/3 s to 1/10,000 s
- Slow Shutter: Support
- Lens: 2.8 - 12 mm @ F1.4, Motorized lens
- Lens Mount: Φ14
- Day & Night: IR cut filter with auto switch
- DNR: 3D DNR
- Wide Dynamic Range: 120dB - Compression Standard:
- Video Compression: H.264 / MJPEG/H.264 Zip+
- H.264 Type: Main Profile
- Video Bit Rate: 32 Kbps ~ 16 Mbps
- Audio Compression: G.711/G.722.1/G.726/MP2L2
- Audio Bit Rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) - Image:
- Max. Resolution: 2688x1520
- Frame Rate:-
- 60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)
- 50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
- BLC: Support, zone configurable
- ROI Codec: Support - Network:
- Network Storage: NAS (Support NFS,SMB/CIFS), ANR
- Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
- Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- General: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
- Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI - Interface:
- Communication Interface: 1 RJ45 10M/100M Ethernet port
- On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128GB
- Reset: Yes - General:
- Working Temperature/Humidity: -22°F ~ 140°F (-30°C ~ 60°C) Humidity 95% or less (non-condensing)
- Power Supply: DC12V ± 10%, PoE (802.3af)
- Power Consumption: Max. 5.5W (Max. 7.5W with IR cut filter on)
- IR Range: Approx. 100ft(30 meters)
- Weather Proof Ratings: IP66
- Dimension: 3.7" x 4.1" x 10.2"(95x105x258.6mm)
