Details

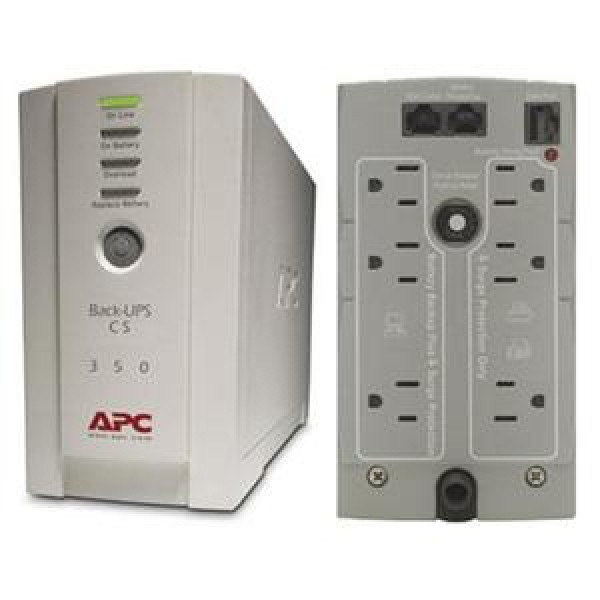

APC Back-UPS CS, 350VA/210W, Input 120V/ Output 120V, Interface Port USB. Retail box.
Features: Addl Surge Protected Outlets, Audible Alarms, Building wiring fault indicator, Cord Management, Intelligent Battery Management, Internet FAX - modem - DSL surge protection, Overload Indicator, Replace Batt Indicator, Software, Unattended Safe & Graceful Shutdown, USB Connectivity, User Replaceable batteries.
Specifications: Communications & Management:Interface port: RS-232, USB.
Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators.
Audible alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm.
Included Software: APC Shutdown Manager, APC PowerChute Personal Edition.
Output: Output power capacity: 350 VA.
Output power capacity: 210 Watts.
Nominal output voltage: 120 V.
Waveform type: Stepped approximation to a sinewave. Output Connections:
(3)NEMA 5-15R, (3)NEMA 5-15R (Surge).
Input: Nominal input voltage: 120 V.
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing). Input Connection Type: NEMA 5-15P.
Cord Length: 6 feet (1.83 meters ).
Input voltage range for main operations: 98 - 140 V.
Surge Protection and Filtering: Surge energy rating: 480 joules.
Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero
clamping response time : meets UL 1449. Dataline protection: RJ-45 Modem/Fax protection (two wire single line).
Runtime: Typical backup time at half load: 18.1 minutes (105 Watts).
Typical backup time at full load: 4.7 minutes (210 Watts).
Batteries: Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof.
Typical recharge time (The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS): 8 hour(s).
Replacement battery cartridge: (1) RBC2.
Physical: Maximum height dimensions: 6.50 inches ( 16.51 cm). Maximum width dimensions: 3.60 inches ( 9.14 cm). Maximum depth dimensions: 11.20 inches ( 28.45 cm).
Net weight: 12.50 lbs ( 5.68 kg).
Shipping Weight: 14.00 lbs ( 6.36 kg).
Shipping Height: 10.35 inches ( 26.29 cm).
Shipping Width: 6.89 inches ( 17.50 cm).
Shipping Depth: 14.06 inches ( 35.71 cm).
Color: Beige.
Units per Pallet: 80.0.
UPC Code: 731304016298.
Environmental: Operating Environment: 0 - 40oC (32 - 104oF). Operating Relative Humidity: 0 - 95%. Operating Elevation: 0-10000 feet (0-3000 m). Storage Temperature -15 - 45oC (5 - 113oF). Storage Relative Humidity: 0 - 95% Non-condensing. Storage Elevation: 0-50000 feet (0-15000 m). Audible noise at 1 meter from surface of unit: 45 dBA. Online thermal dissipation : 20 BTU/hr.
Package Includes: CD with software, User Manual, USB cable, Velcro Cord Management Straps.
Features: Addl Surge Protected Outlets, Audible Alarms, Building wiring fault indicator, Cord Management, Intelligent Battery Management, Internet FAX - modem - DSL surge protection, Overload Indicator, Replace Batt Indicator, Software, Unattended Safe & Graceful Shutdown, USB Connectivity, User Replaceable batteries.
Specifications: Communications & Management:
Output:
Input:
Surge Protection and Filtering:
Runtime:
Batteries:
Physical:
Environmental: Operating Environment: 0 - 40oC (32 - 104oF). Operating Relative Humidity: 0 - 95%. Operating Elevation: 0-10000 feet (0-3000 m). Storage Temperature -15 - 45oC (5 - 113oF). Storage Relative Humidity: 0 - 95% Non-condensing. Storage Elevation: 0-50000 feet (0-15000 m). Audible noise at 1 meter from surface of unit: 45 dBA. Online thermal dissipation : 20 BTU/hr.
Package Includes: CD with software, User Manual, USB cable, Velcro Cord Management Straps.
