Details

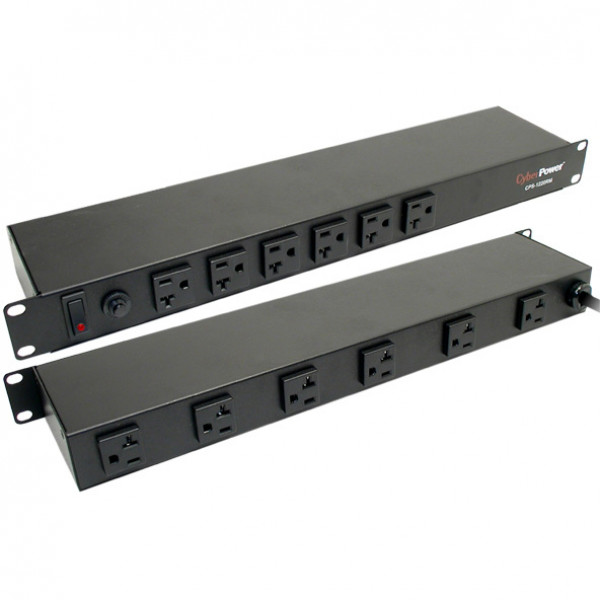

This 12-outlet (6 Front and 6 Rear) rack mount power distribution unit (PDU) provides 120V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a durable metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A 3-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
Specifications:
Specifications:
- Input:
- Voltage: 120V
- Plug Type: NEMA 5-20P
- Plug Style: Straight
- Cord Length: 15'
- Switch: lighted on/off - Output:
- Outlets - Total: 12
- Outlet Type: NEMA 5-20R
- Outlets - Front: 6
- Outlets - Rear: 6 - Surge Protection and Filtering:
- Surge Suppression: None
- Ethernet Protection RJ45: None
- Coax Protection RG6: None
- Phone Protection RJ11: None - Physical:
- Dimensions (WxHxD): 17.25" x 1.75" x 4.75"
- Rack Size: 1U
- Weight (lbs): 6 - Environmental:
- Operating Temperature: 32°F to 95°F / 0°C to 35 °C
- Operating Humidity: 0% - 95% non condensing
- Maximum Operating Elevation: 10,000 ft / 3,000 m
- Storage Temperature: 5 °F to 113°F / -15°C to 45 °C
- Maximum Storage Elevation: 50,000 ft / 15,000 m - Certifications:
- Certifications: UL Recognized
- ROHS: ROHS Compliant
